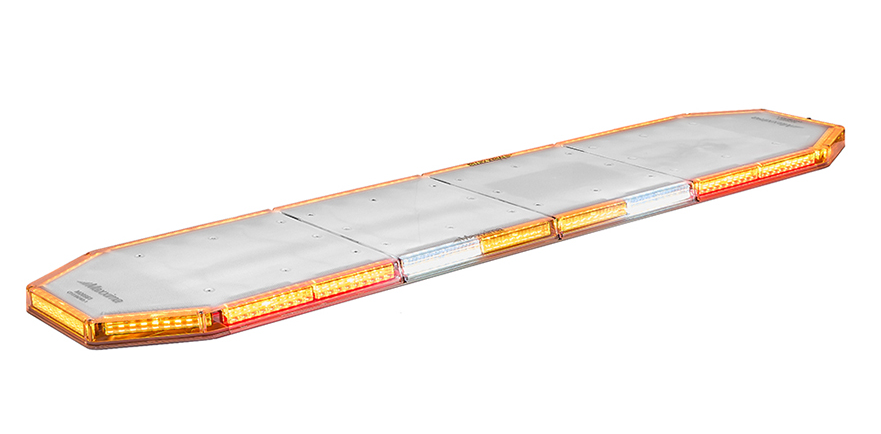

The M20561 is a 60” low profile linear LED lightbar designed for tow & recovery applications. It is fully populated with 22 LED heads including amber flashing, red stop/turn/tails (STT) and white work lights as well as a built-in, all-amber traffic director. It is fully programmable with 30 selectable warning patterns, 10 traffic director patterns, and optional “Pilot Mode” with no dark time between flashes. It includes discrete wires for “Low Power” or Dim Mode and Front Cut Off and 3 program modes or memory slots. It includes a 25-foot, 15-conductor jacketed cable assembly, heavy duty tow brackets and mounting hardware. It is compliant with SAE J595 Class 1, J845 Class 1A, and California Title 13 (CA 13). It is easily serviced while mounted on the vehicle, is supported with a full assortment of service parts.
Features & Benefits:
- 60" Amber Tow Bar – Low Profile Linear LED Light Bar
- Fully Populated 22-Heads with Work Lights, Stop/Tail/Turn, and Traffic Director
- Amber Flashing Warning Front, Sides, and Rear
- Red Stop/Turn & Tail Lights and Rear Facing White Work Lights
- 30 Programmable Flashing Warning Patterns and 10 Traffic Director Patterns
- Low Power (Dim) Mode and Front Cut Off
- 12/24VDC Dual Voltage
- Optional Pilot Mode – No Dark Time Between Flashes
- 3 Program Modes / Memory Slots (e.g. Loading, Transport, Stand-By)
- Discrete Wiring – No Laptop Needed to Program
- 25-Foot Cable, 15-Conductor Jacketed Cable
- Heavy Duty Tow Bracket and Mounting Hardware Included
- Approvals: J595 Class 1, J845 Class 1A, CA Title 13
- Easy Serviceability while Mounted on Vehicle - Service Parts Available
-
5 Year Warranty
Specifications:
-
Voltage: 12/24VDC Dual Voltage
-
Max Amp Draw: 18A 12V / 9A Max 24V
-
Dimensions: 59.4” W x 1.7” H x 11.8” D
-
Mounting: Flat Mount, U-Bracket Included
-
Connector: 15 Jacketed Wires, 25’ Length
-
LEDs: 22 LED heads, 252 Total LEDs
-
Legal Heading: J595 Class 1, J845 Class 1A, CA13
-
SAE: W3-1M, W-1M, CA T13
